3" Steel shaft

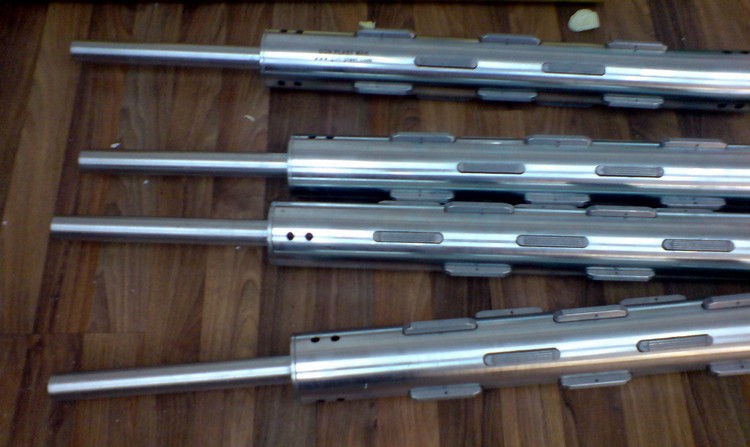

Thumbnail image for http://aysmakina.com/DesktopModules/FotoBuyutec/images/562/DSC00046.jpg

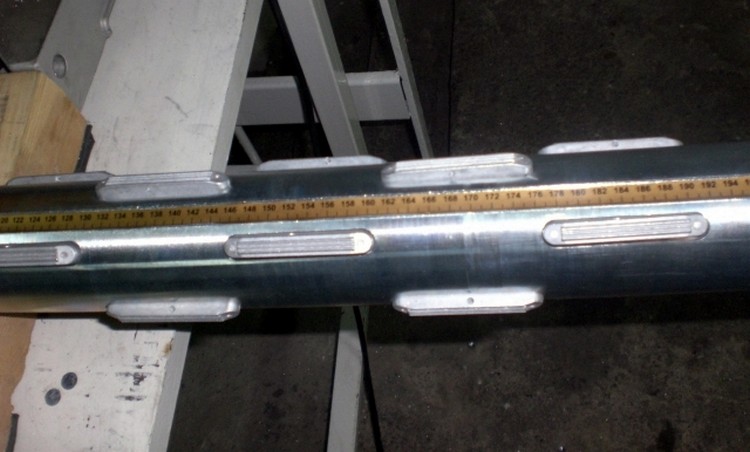

Thumbnail image for http://aysmakina.com/DesktopModules/FotoBuyutec/images/562/CIMG1306.jpg

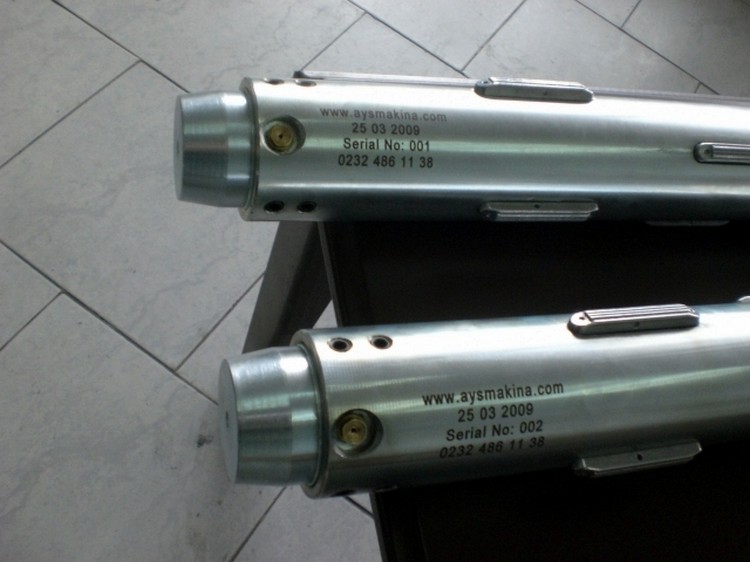

Thumbnail image for http://aysmakina.com/DesktopModules/FotoBuyutec/images/562/CIMG0716.jpg

Slot Pneumatic Shafts

Slot-type shaft housings are  produced in a standard size of 3", for special orders are prepared in different sizes.
Slot shaft sizes are 500 -3000 mm for special orders, can be produced in lengths up to 5000 mm .
Thickness of 100 micron hard chrome coated for corrosion and abrasion.
Housing profiles are made by special alloy cold- drawn tubes.
Shaft titles are produced by 45-50 HRC tougened special steels .Precision CNC machines according to customers'  technical drawings is performed
Pneumatic shaft titles according to the demand of chromium , nickel , phosphate and zinc phosphate coating corrosion resistance and surface quality are increased..





TECHNICAL DETAILS (Slot Pneumatic Shafts)

EXPLANATION 3" 4" 5" 6"
Outer Diameter Size (mm)
Ø74 Ø99 Ø124 Ø149
Opening Diameter (mm)
Ø82 Ø107 Ø132 Ø157
Max. Body Length (mm)
3000 3000 3000 3000
Slot Number (pcs / meter ) 12-36 12-36 16-48 24-72
Continuous Operating Pressure(bar) 7-9 7-9 7-9 7-9
Max.Secretion Rate(mm/m)
0,2 0,2 0,2 0,2
Housing Weight (kg/m )
15 22 30 38
